Hoist And Winch Motors

Motors for marine winches and hoists are made for S2 intermittent duty and special features to withstand very high starting current. Bodies are powder coated to withstand the corrosive effects of the humid marine environment.

Advantages

  • Rugged brush holder
  • High conductivity brushes
  • Very high starting current
  • Brazed winding joints
  • Powder coated externally

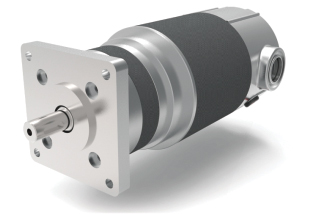

AB/HK SERIES

Power(KW) Voltage D Speed(RPM)
0.08 to 0.18 12V - 24V 89 20 to 200
0.08 to 0.18 114

Ratio: 3, 4, 9, 16, 27, 64 Foot, Face, Flange Options
Available in TENV-TEFC-SPDP

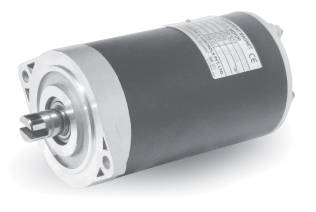

G SERIES

Power(KW) Voltage Speed(RPM)
0.15 to 0.8 12V - 24V 1500 to 4500

PM Motor Protection: IP-44
S2-S3 Duty Cycle

HP-BT SERIES

Power(KW) Voltage D Speed(RPM)
0.08 to 2.2 12V - 24V 114 1500 to 4500
1 to 3 125

Series/Compound Wound Motor Protection: IP-44, IP-20
S2-S3 Duty Cycle

OPTIONS

Brake

Inline Helical Gearbox

Worm Gearbox

Blackodized Components

Canopy

Special Mounting
